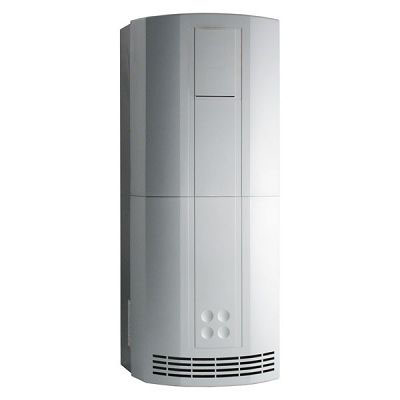

690-433156F1-B00P00-A400 (690PF/0900/400/ 0011/UK/0/0/0/0/B0/115/0)
690-433156F1-B00P00-A400 (690PF/0900/400/ 0011/UK/0/0/0/0/B0/115/0) 690-433156F1-B00P00-A400 (690PF/0900/400/ 0011/UK/0/0/0/0/B0/115/0)

690-433156F1-B00P00-A400 (690PF/0900/400/ 0011/UK/0/0/0/0/B0/115/0)

Product ID : AC690 SERIES
Product Attributes :

The AC690+ Integrator Series is a single range of AC drives designed to meet the requirements of all variable speed applications from simple single motor speed control through to the most sophisticated integrated multi-drive systems. The heart of the AC690+ is a highly advanced 32-bit microprocessor based motor control model. This provides an exceptional dynamic performance platform to which can be added a host of communications and control options, enabling you to tailor the drives to meet your exact requirements. The AC690+ is available in 380-460V 3-phase 1 to 1500 HP and 220V-240V 1 to 75 HP.


Product Description


AC VARIABLE FREQUENCY DRIVES, HP RATED - AC690 SERIES

Model:690-433156F1-B00P00-A400 (690PF/0900/400/ 0011/UK/0/0/0/0/B0/115/0)




The AC690+ Integrator Series is a single range of AC drives designed to meet the requirements of all variable speed applications from simple single motor speed control through to the most sophisticated integrated multi-drive systems. The heart of the AC690+ is a highly advanced 32-bit microprocessor based motor control model. This provides an exceptional dynamic performance platform to which can be added a host of communications and control options, enabling you to tailor the drives to meet your exact requirements. The AC690+ is available in 380-460V 3-phase 1 to 1500 HP and 220V-240V 1 to 75 HP.


Specifications:

Performance Characteristics


BRAND Parker
PRODUCT TYPE AC Drive
DRIVE FORMATSingle Axis Technology
SERIES AC690
INPUT SUPPLY VOLTAGE

1*230VAC

3*230VAC

3*380-480VAC

3*500VAC

OUTPUT RATING (HP)

1 - 1500HP
SUPPORTED MOTOR TYPES

Induction

Spindle

SUPPORTED FEEDBACK DEVICE Incremental Encoder
MODES OF CONTROL

V/Hz

Sensorless Vector

Closed Loop Vector

COMMUNICATION INTERFACE RS232 / RS485

CANopen

ControlNet

DeviceNet

Profibus

Ethernet TCP/IP

Link Communications

OPERATING TEMPERATURE (C) 0-45C / 0-40C with IP40 cover (derate up to 50C max)
OPERATING TEMPERATURE (F) 32-113F / 32-104F with IP40 cover (derate up to 122F max)
OPERATING ALTITUDE Up to 1000m ASL (derate > 1000m)
OVERLOAD RATINGS

Heavy Duty Rating (Constant Torque) : 150% for 60s

Heavy Duty Rating (Constant Torque) : 180% for 1s

Normal Duty Rating (Variable Torque - pumps and fans) : 115% for 10s

CERTIFICATES

CE (EMC & LVD)

UL Listed

cUL Listed
