The advanced DC590+ series 4-quadrant variable speed DC drives offer current ratings of up to 2700A, function block programming, configurable I/O and extensive application software, meeting the demands of the most complex DC motor control applications

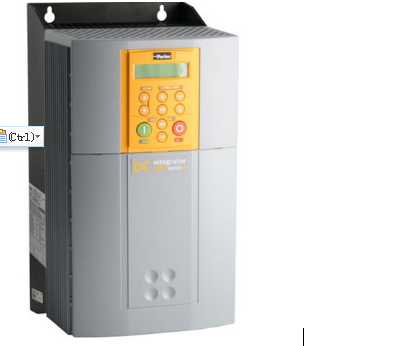

DC MOTOR SPEED CONTROLLERS-DC590P SERIES
Model:590P-53270020-P00-U4A0 (590P/0070/500/ 0011/UK/AN/0/0/0)
The advanced DC590+ series 4-quadrant variable speed DC drives offer current ratings of up to 2700A, function block programming, configurable I/O and extensive application software, meeting the demands of the most complex DC motor control applications
Specifications:
Performance Characteristics
| BRAND | Parker |
| PRODUCT TYPE | DC Drive |
| DRIVE FORMAT | Single Axis Technology |
| SERIES | DC590 |
| INPUT SUPPLY VOLTAGE | 3*230VAC 3*380-480VAC 3*500-690VAC |
| CONTINUOUS OUTPUT CURRENT RATING | 15 - 1950A |
| OUTPUT RATING (HP) | 1 - 1200HP |
| SUPPORTED MOTOR TYPES | DC Brushed Servo |
| SUPPORTED FEEDBACK DEVICE | Armature Voltage Tachometer Encoder |
| MODES OF CONTROL | Regenerative Non-Regenerative Stack Controller |
| COMMUNICATION INTERFACE | RS232 / RS485 CANopen ControlNet DeviceNet Profibus Ethernet TCP/IP Link Communications Modbus |
| OPERATING TEMPERATURE (C) | 0 - 45C (15-165A) / derate up to 55C max 0 - 35C (180-270A) / derate up to 55C max 0 - 40C (380-1950A) / derate up to 55C max |
| OPERATING TEMPERATURE (F) | 32 - 113F (15-165A) / derate up to 131F max 32 - 95F (180-270A / derate up to 131F max 32 - 104F (380-1950A) / derate up to 131F max |
| OPERATING ALTITUDE | Up to 500m ASL (derate > 500m) |
| OVERLOAD RATINGS | 150% for 30s 200% for 10s (depending on drive output current, refer to manual for details) |
| CERTIFICATES | CE (EMC & LVD) Overvoltage Category III Pollution Degree II UL Listed cUL Listed |
