590P-53235010-P00-U4A0 (590P/0035/500/ 0011/UK/AN/0/0/0)
590P-53235010-P00-U4A0 (590P/0035/500/ 0011/UK/AN/0/0/0) 590P-53235010-P00-U4A0 (590P/0035/500/ 0011/UK/AN/0/0/0) 590P-53235010-P00-U4A0 (590P/0035/500/ 0011/UK/AN/0/0/0) 590P-53235010-P00-U4A0 (590P/0035/500/ 0011/UK/AN/0/0/0)

590P-53235010-P00-U4A0 (590P/0035/500/ 0011/UK/AN/0/0/0)

Product ID : DC590P SERIES
Product Attributes :

The advanced DC590+ series 4-quadrant variable speed DC drives offer current ratings of up to 2700A, function block programming, configurable I/O and extensive application software, meeting the demands of the most complex DC motor control applications

Product Description
DC MOTOR SPEED CONTROLLERS - DC590P SERIES

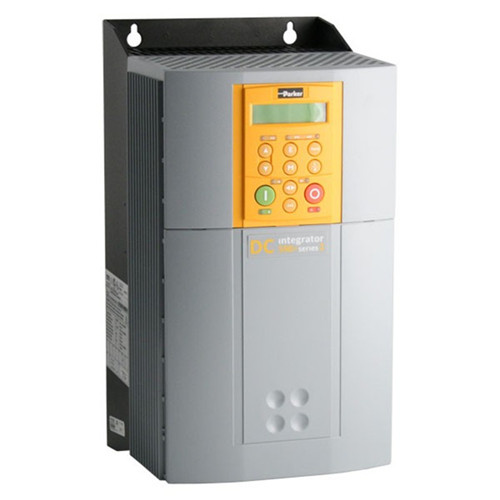

Model:590P-53235010-P00-U4A0 (590P/0035/500/ 0011/UK/AN/0/0/0)     image.png


Product Description:

The DC590+ Series DC Digital Drive is designed for use in a suitable enclosure, with associated control equipment. The unit accepts a variety of standard three-phase ac supply voltages depending upon the model, and is suitable for the powering of DC shunt field and permanent magnet motors, providing controlled dc output voltage and current for armature and field.
All units are designed for simple and economical panel mounting using keyhole slots. Plug-in control connectors simplify the fitting and removal of the unit to the panel.


Specifications:

Performance Characteristics

Model590P/35A
Input Voltage220-500V ±10%
Frequency50/60Hz ±5%
Max.Supply Current32A
Auxiliary Voltage115-230V
Output Current35A
Max. Auxiliary Current3A
Max.Armature Voltage600V
Max.Field Voltage500V
Max.Field Current4A
QuadrantFOUR
FeedbackTacho/Encoder/Armature feedback
Dimension375*200*220mm


Frame 1

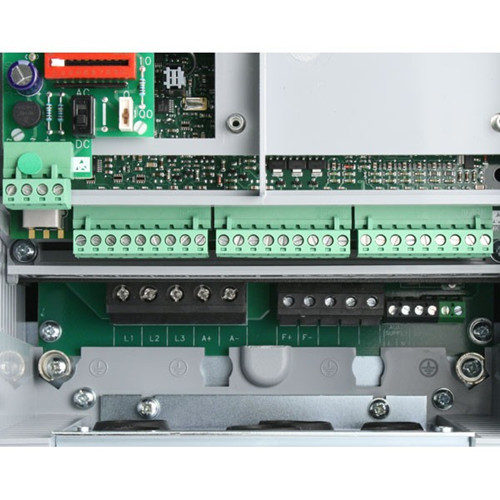

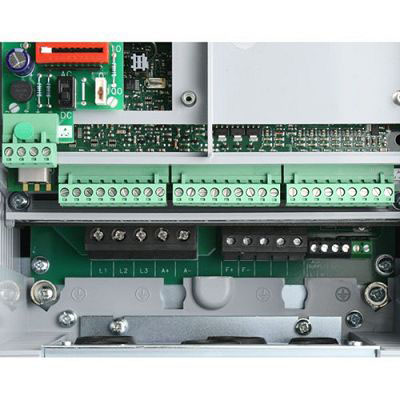

Connection Diagram
