The AC690+ Integrator Series is a single range of AC drives designed to meet the requirements of all variable speed applications from simple single motor speed control through to the most sophisticated integrated multi-drive systems. The heart of the AC690+ is a highly advanced 32-bit microprocessor based motor control model. This provides an exceptional dynamic performance platform to which can be added a host of communications and control options, enabling you to tailor the drives to meet your exact requirements. The AC690+ is available in 380-460V 3-phase 1 to 1500 HP and 220V-240V 1 to 75 HP.

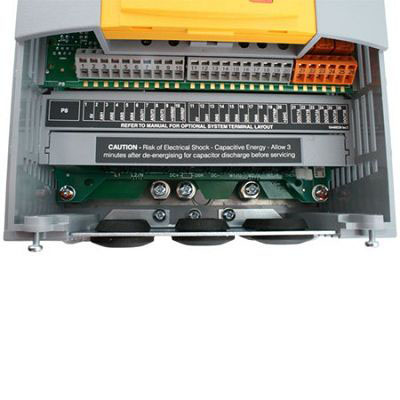

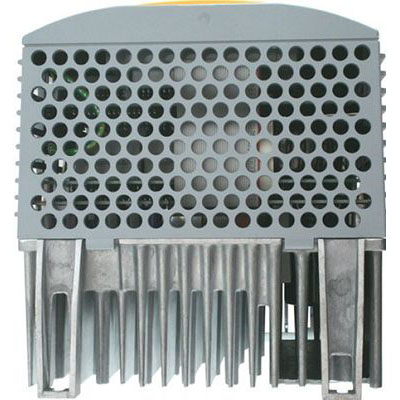

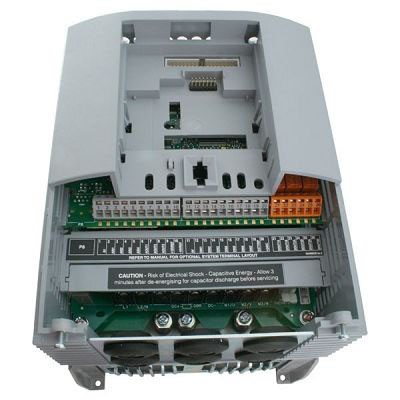

Inverter SSD 690-431550B0-BF0P00-A400
Model：690-431550B0-BF0P00-A400 (690PB/0022/400/3/F/ 0011/UK/0/0/0/0/0)
The AC690+ Integrator Series is a single range of AC drives designed to meet the requirements of all variable speed applications from simple single motor speed control through to the most sophisticated integrated multi-drive systems. The heart of the AC690+ is a highly advanced 32-bit microprocessor based motor control model. This provides an exceptional dynamic performance platform to which can be added a host of communications and control options, enabling you to tailor the drives to meet your exact requirements. The AC690+ is available in 380-460V 3-phase 1 to 1500 HP and 220V-240V 1 to 75 HP.
Specifications:
Performance Characteristics
| BRAND | Parker |
| PRODUCT TYPE | AC Drive |
| DRIVE FORMAT | Single Axis Technology |
| SERIES | AC690 |
| INPUT SUPPLY VOLTAGE |
1*230VAC 3*230VAC 3*380-480VAC 3*500VAC |
|
OUTPUT RATING (HP) |
1 - 1500HP |
| SUPPORTED MOTOR TYPES |
Induction Spindle |
| SUPPORTED FEEDBACK DEVICE | Incremental Encoder |
| MODES OF CONTROL |
V/Hz Sensorless Vector Closed Loop Vector |
| COMMUNICATION INTERFACE | RS232 / RS485
CANopen ControlNet DeviceNet Profibus Ethernet TCP/IP Link Communications |
| OPERATING TEMPERATURE (C) | 0-45C / 0-40C with IP40 cover (derate up to 50C max) |
| OPERATING TEMPERATURE (F) | 32-113F / 32-104F with IP40 cover (derate up to 122F max) |
| OPERATING ALTITUDE | Up to 1000m ASL (derate > 1000m) |
| OVERLOAD RATINGS |
Heavy Duty Rating (Constant Torque) : 150% for 60s Heavy Duty Rating (Constant Torque) : 180% for 1s Normal Duty Rating (Variable Torque - pumps and fans) : 115% for 10s |
| CERTIFICATES |
CE (EMC & LVD) UL Listed cUL Listed |
