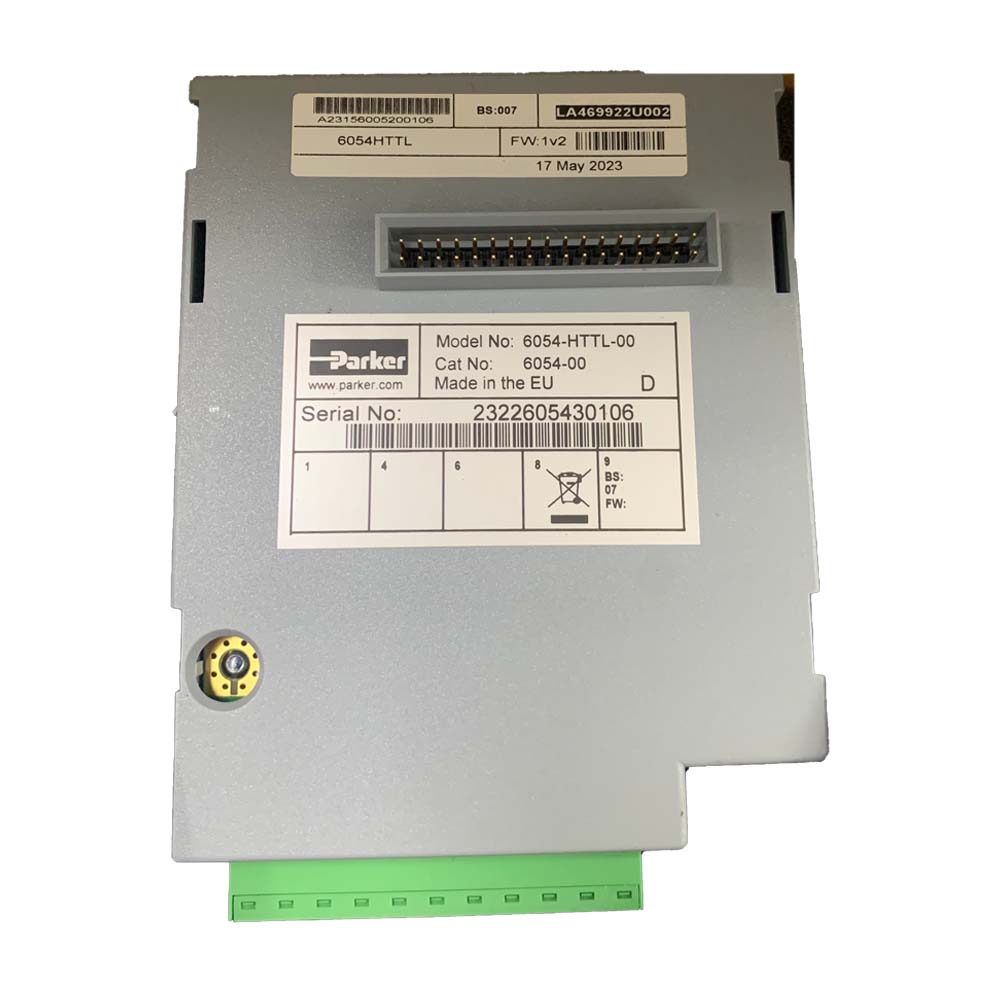

SSD 6054-HTTL Encoder Feedback Card For 690P Sizes C To K 6054-HTTL-00

SSD 6054-HTTL Encoder Feedback Card For 690P Sizes C To K 6054-HTTL-00

Model: 6054-HTTL-00

HTTL Encoder Feedback Board in Tech-Box form for SSD 690P sizes C to K closed loop AC Flux Vector drives at HTL level.

Input frequency:  Up to 250kHz in quadrature, as single ended or differential.
Power Supply:  10V to 20V to 250mA DC for the encoder (Voltage is adjustable).

Suitable for use with Size C to K 690P drives only.
Not suitable for use with 690P series Inverters in frame size B.
See linked products below for equivalent suitable for use with 690P in size B.

When factory fitted to a AC 690P (size C and above), the part number is changed as follows:-
Current Part Number: 690-XXXXXXXX-XXXXXX-XX3X
Legacy Part Number: 690PX / XXXX / XXX / XXXX / XX / HTTL / X / X / X / X / X / X

Part number:  6054-HTTL-00.  Legacy Part Number:  6054/HTTL.
