Genuine Brand SSD DC Motor Speed Controllers - DC514C Series 514C-16-00-00-00
Genuine Brand SSD DC Motor Speed Controllers - DC514C Series 514C-16-00-00-00 Genuine Brand SSD DC Motor Speed Controllers - DC514C Series 514C-16-00-00-00 Genuine Brand SSD DC Motor Speed Controllers - DC514C Series 514C-16-00-00-00 Genuine Brand SSD DC Motor Speed Controllers - DC514C Series 514C-16-00-00-00

Genuine Brand SSD DC Motor Speed Controllers - DC514C Series 514C-16-00-00-00

Product ID : 514C-16A
Product Attributes :

The regenerative DC514C series analog 4-quadrant DC drives offer 4-32A output ratings and full four-quadrant control of DC motors, making it ideal for applications involving overhauling loads or where rapid and accurate deceleration is required

Product Description

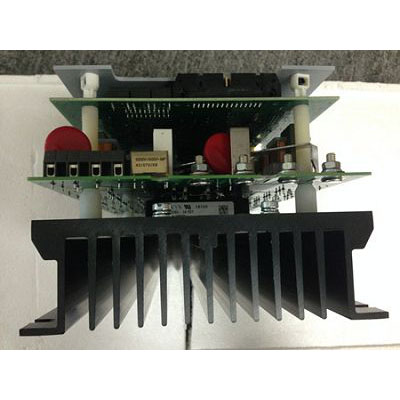

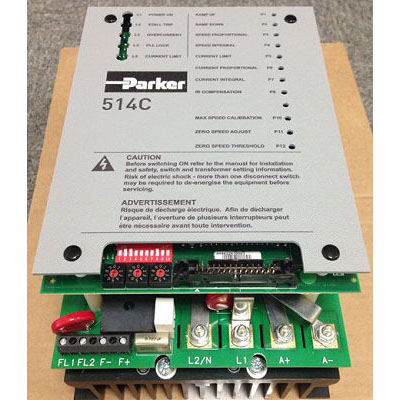

DC Motor Speed Ccontrolled-DC514C Series 514C-16-00-00-00image.png



The regenerative 514C DC drive offers full four quadrant control of DC motors from single phase supplies. As such it is ideal for applications involving overhauling loads or where rapid and accurate deceleration is required. 514C can be used “open loop” with armature voltage feedback, or with DC tach feedback for enhanced regulation and speed range. Chassis mount, IP00 rating.

Markets:
• Industrial Markets
• Packaging
• Food Processing
• Machine Tools
• Converting

Features and Benefits:
• Four quadrant regenerative control
• 110...500 VAC AC supply selection by jumpers
• CE marked and EMC compliant
• AC power contactor logic and supply
• Extremely linear control loops
• Separate AC auxiliary supply
• Torque or speed control
• Three setpoint and torque limit inputs
• Buffered analogue current output (10V, 10mA)
• +10V and -10V analogue reference supplies
• +24V digital reference supply
• Drive healthy output

Applications:
• Machine Tool Spindles
• Wire Drawing Machines
• Winders/Reelers

Standards:
• CE Marked to EN50178 (Safety, Low Voltage Directive)
• CE Marked to EN61800-3 (EMC Directive) with external filter
• NRTL Listed to US Standard UL508C
• NRTL listed to Canadian standard C22.2#14



Specifications:

Performance Characteristics



BRAND  Parker
PRODUCT TYPE  DC Drive
DRIVE FORMAT   Single Axis Technology
SERIES  DC51n
INPUT SUPPLY VOLTAGE  1*110VAC

 1*230VAC

 1*380-415VAC

CONTINUOUS OUTPUT CURRENT   RATING  4 - 32A
OUTPUT RATING (HP)  0.3 - 7.5HP
SUPPORTED MOTOR TYPES  DC Brushed Servo
SUPPORTED FEEDBACK DEVICE  Armature Voltage

 Tachometer

MODES OF CONTROL  Regenerative
COMMUNICATION INTERFACE   n/a
OPERATING TEMPERATURE (C)  0 - 40
OPERATING TEMPERATURE (F)  32 - 104
OPERATING ALTITUDE  Up to 1000m ASL
OVERLOAD RATINGS  150% for 60s
CERTIFICATES

 CE (EMC & LVD)

 UL Listed

 cUL Listed
