Four-quadrant Reversible Frequency Converter 590P-53235010-P00-U4A0 (590P/0035/500/ 0011/UK/AN/0/0/0)
Four-quadrant Reversible Frequency Converter 590P-53235010-P00-U4A0 (590P/0035/500/ 0011/UK/AN/0/0/0) Four-quadrant Reversible Frequency Converter 590P-53235010-P00-U4A0 (590P/0035/500/ 0011/UK/AN/0/0/0) Four-quadrant Reversible Frequency Converter 590P-53235010-P00-U4A0 (590P/0035/500/ 0011/UK/AN/0/0/0) Four-quadrant Reversible Frequency Converter 590P-53235010-P00-U4A0 (590P/0035/500/ 0011/UK/AN/0/0/0)

Four-quadrant Reversible Frequency Converter 590P-53235010-P00-U4A0 (590P/0035/500/ 0011/UK/AN/0/0/0)

Product ID : DC590P SERIES
Product Attributes :

The advanced DC590+ series 4-quadrant variable speed DC drives offer current ratings of up to 2700A, function block programming, configurable I/O and extensive application software, meeting the demands of the most complex DC motor control applications

Product Description
Four-quadrant Reversible Frequency Converter 590P-53235010-P00-U4A0 (590P/0035/500/ 0011/UK/AN/0/0/0)

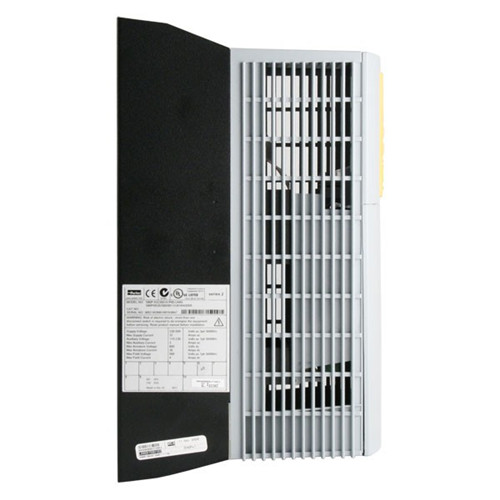

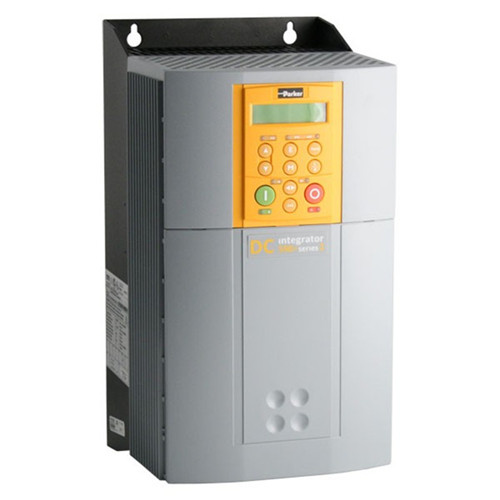

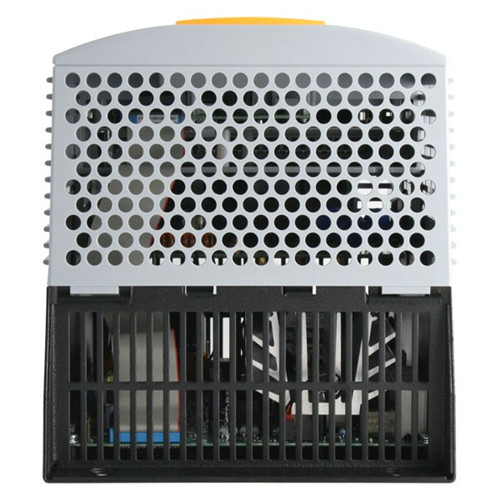

Model:590P-53235010-P00-U4A0 (590P/0035/500/ 0011/UK/AN/0/0/0)     image.png



Product Description:

The DC590+ Series DC Digital Drive is designed for use in a suitable enclosure, with associated control equipment. The unit accepts a variety of standard three-phase ac supply voltages depending upon the model, and is suitable for the powering of DC shunt field and permanent magnet motors, providing controlled dc output voltage and current for armature and field.
All units are designed for simple and economical panel mounting using keyhole slots. Plug-in control connectors simplify the fitting and removal of the unit to the panel.





Specifications:

Performance Characteristics

Model 590P/35A
Input Voltage 220-500V ±10%
Frequency 50/60Hz ±5%
Max.Supply Current 32A
Auxiliary Voltage 115-230V
Output Current 35A
Max. Auxiliary Current 3A
Max.Armature Voltage 600V
Max.Field Voltage 500V
Max.Field Current 4A
Quadrant FOUR
Feedback Tacho/Encoder/Armature feedback
Dimension 375*200*220mm



Frame 1

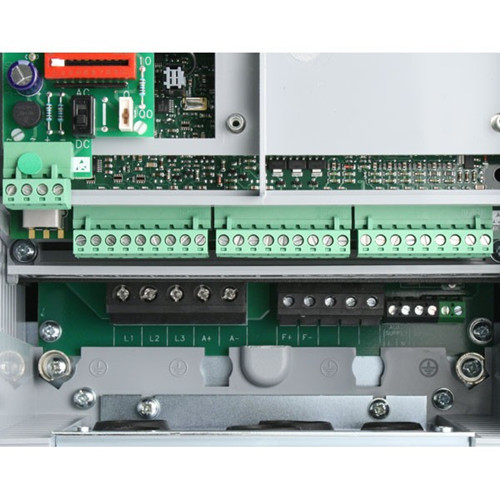

Connection Diagram
