SSD SERIES AC VARIABLE FREQUENCY DRIVES, HP RATED - AC10 SERIES
SSD SERIES AC VARIABLE FREQUENCY DRIVES, HP RATED - AC10 SERIES SSD SERIES AC VARIABLE FREQUENCY DRIVES, HP RATED - AC10 SERIES SSD SERIES AC VARIABLE FREQUENCY DRIVES, HP RATED - AC10 SERIES SSD SERIES AC VARIABLE FREQUENCY DRIVES, HP RATED - AC10 SERIES SSD SERIES AC VARIABLE FREQUENCY DRIVES, HP RATED - AC10 SERIES

SSD SERIES AC VARIABLE FREQUENCY DRIVES, HP RATED - AC10 SERIES

Product ID : 10G-11-0035-BF
Product Attributes :

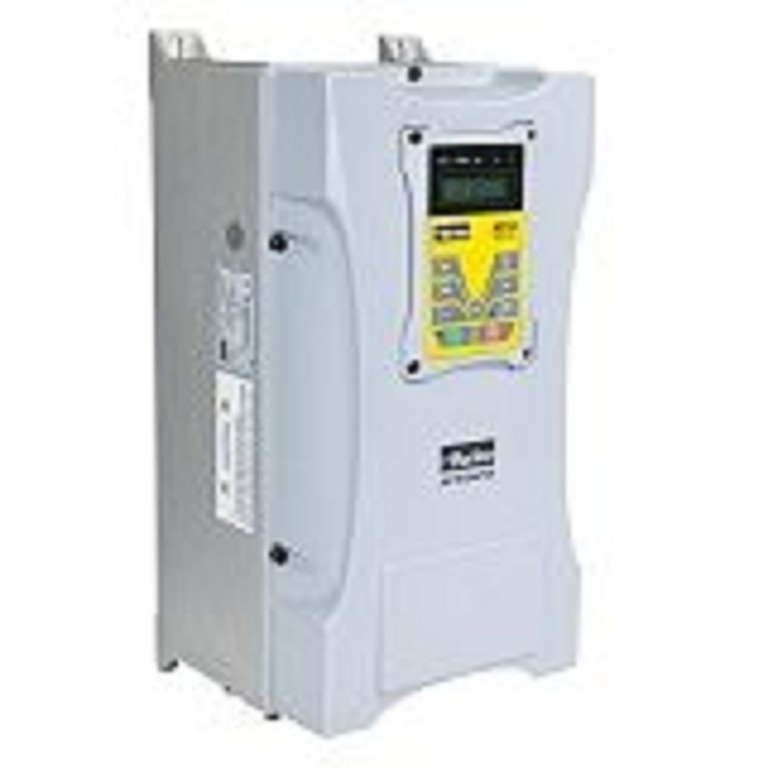

The AC10 drive is a simple, small, and reliable variable speed drive and offers a low cost, compact solution for simple AC induction or PMAC motor control in applications up to 250 HP

Product Description



SSD SERIES AC VARIABLE FREQUENCY DRIVES, HP RATED - AC10 SERIES



The AC10 drive is a simple, small, and reliable variable speed drive and offers a low cost, compact solution for simple AC induction or PMAC motor control in applications up to 250 HP







Specifications:

Performance Characteristics



BRAND

Parker
PRODUCT TYPE AC Drive
DRIVE FORMAT  Single Axis Technology
SERIES      AC10
INPUT SUPPLY VOLTAGE

1*230VAC

3*230VAC

3*380-480VAC

CONTINUOUS OUTPUT CURRENT RATING
OUTPUT RATING (HP)  0.25 - 250 HP (IP20) / 0.5 - 20 HP (IP66)
SUPPORTED MOTOR TYPES Induction
SUPPORTED FEEDBACK DEVICE
MODES OF CONTROL

 V/Hz

Sensorless Vector

COMMUNICATION INTERFACE

RS232 / RS485

Modbu

OPERATING TEMPERATURE (C) 0-40C (derate up to 50C max)
OPERATING TEMPERATURE (F)   32-104F (derate up to 122F max)
OPERATING ALTITUDE  Up to 1000m ASL (derate > 1000m)
OVERLOAD RATINGS   150% for 60s
CERTIFICATES

CE (EMC & LVD)

Overvoltage Category III
