The AC650G is an entry level AC drive designed to provide cost-effective control of AC induction motors used in many everyday industrial applications, up to 10HP, and is ideally suited to energy saving in pump and fan applications.
New SSD 0.55kW 230V 1ph to 3ph AC Inverter Drive,No Keypad, RS232 Port
Parker SSD Drives 650G Series AC Inverter for 0.25kW (0.33HP) 230V three phase motor in VxF and Sensorless Vector control to 1.5A. Converts fixed frequency single phase 230V input to variable frequency three phase 230V to control the speed of a standard AC Induction motor.
Size 1: 73mm Wide x 142mm Deep x 143mm High. IP20.
Weight: 0.85kg.
Overload: 150% x 30 seconds
Speed Control Range: 0-240Hz
Braking: No Dynamic Braking

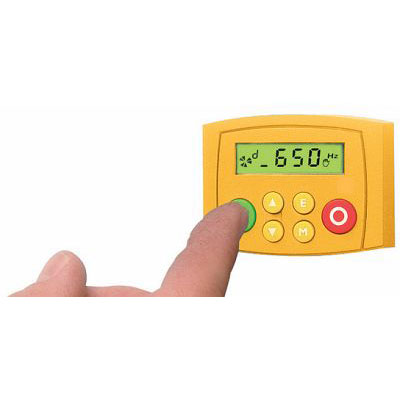

Removable Keypad, RS232 Port, 2 Analogue Inputs, 3/4 Digital Inputs, 1 Analogue Output, 10 Volt ref, 2 Programmable Digital Input/Outputs, 1 Relay Contact set, 1 motor thermistor input.
Input Current: 4.2A
Input Voltage: 220-240V Single Phase ±10% at 50-60Hz ±10%
EMC Compliance: No integrated EMC filters.
Cubicle mount.
Rated 40°C Ambient.
Ventilation space in front: [unspecified], above and below: 100mm, at sides: [unspecified].
Heat Loss at max output: 26W
Mounting via 35mm DIN rail or via 2 x M4 screws at rear on 132mm centres.
