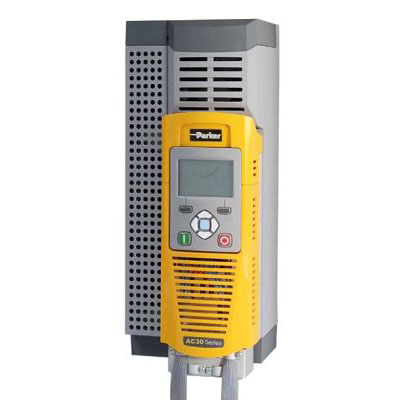

31V-4H0145-BE-2S-0000
31V-4H0145-BE-2S-0000 31V-4H0145-BE-2S-0000 31V-4H0145-BE-2S-0000 31V-4H0145-BE-2S-0000

31V-4H0145-BE-2S-0000

Product ID : AC30 SERIES
Product Attributes :

The AC30V variable speed drives provide users with exceptional levels of motor control for general purpose open-loop industrial applications up to 350 HP. A range of communications and I/O options are available separately.

Product Description



 image.pngAC VARIABLE FREQUENCY DRIVES, HP RATED

AC30 SERIES [COMPLETE DRIVE PACKAGE]


Model:31V-4H0145-BE-2S-0000



The AC30V variable speed drives provide users with exceptional levels of motor control for general purpose open-loop industrial applications up to 350 HP. A range of communications and I/O options are available separately.




Specifications:

Performance Characteristics


BRAND

Parker
PRODUCT TYPEAC Drive
DRIVE FORMAT Single Axis Technology
SERIES     AC30
INPUT SUPPLY VOLTAGE

3*380-480VAC

CONTINUOUS OUTPUT CURRENT RATING
OUTPUT RATING (HP) 1 - 350 HP
SUPPORTED MOTOR TYPES

Brushless Servo

Frameless Servo

Induction

Spindle

PMA

SUPPORTED FEEDBACK DEVICE

Resolver

Incremental Encoder

MODES OF CONTROL

 V/Hz

Sensorless Vector

Speed Control of Permanent Magnet Motor

COMMUNICATION INTERFACE

RS485 / Modbus RTU

CANopen

Ethernet TCP/IP

EtherCAT

Profibus

Profinet

OPERATING TEMPERATURE (C)0-40C Normal Duty / 0-45C Heavy Duty (derate up to 50C max)
OPERATING TEMPERATURE (F)  32-104F Normal Duty / 32-113F Heavy Duty (derate up to 122F max)
OPERATING ALTITUDE Up to 1000m ASL (derate > 1000m)
OVERLOAD RATINGS  150% for 60s / 180% for 3s
CERTIFICATES

CE (EMC & LVD)

UL Listed

cUL Listed

RoHS Compliance

Overvoltage Category III

Pollution Degree II

Pollution Degree III

DNV Marine Certification (0.75 to 75kW)
